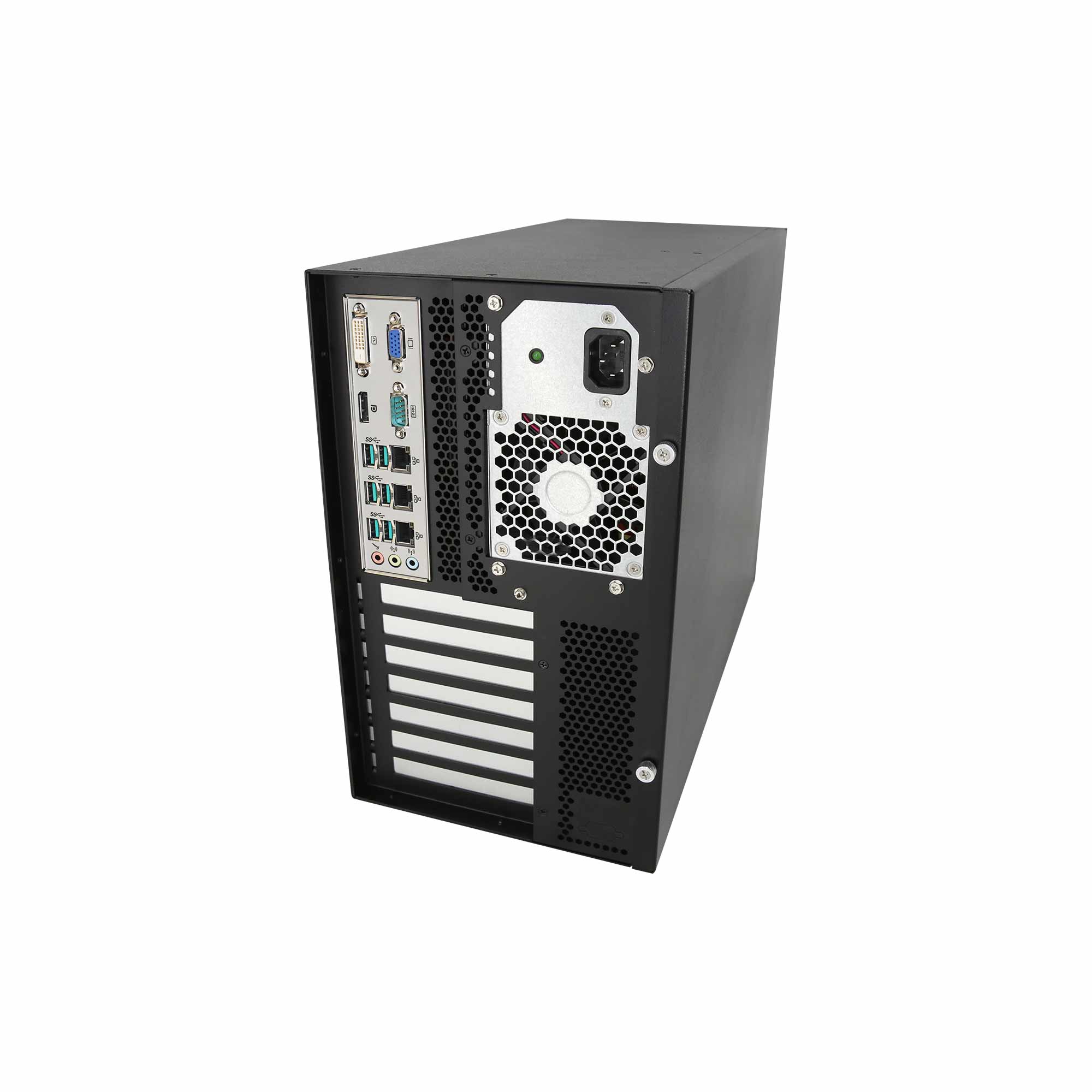

塔式工控機 CEFS-TA31-W48A

Intel^?10代酷睿 i9/i7/i5/i3/至強^?處理器, 功耗最高支援到95W, 支持intel vPro
雙通道4插槽 DDR4 ECC/Non-ECC 2400/2666/2933MHz, 高達128GB(酷睿 i5/i7/i9 只支持Non-ECC)
支持VGA, DVI-D, DP三屏顯示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
內置PCI, PCIe插槽，支持多種模塊擴展
抗震動磁盤架設計，可支持1個5.25寸光驅、2個2.5"SSD、2個3.5"HDD硬盤

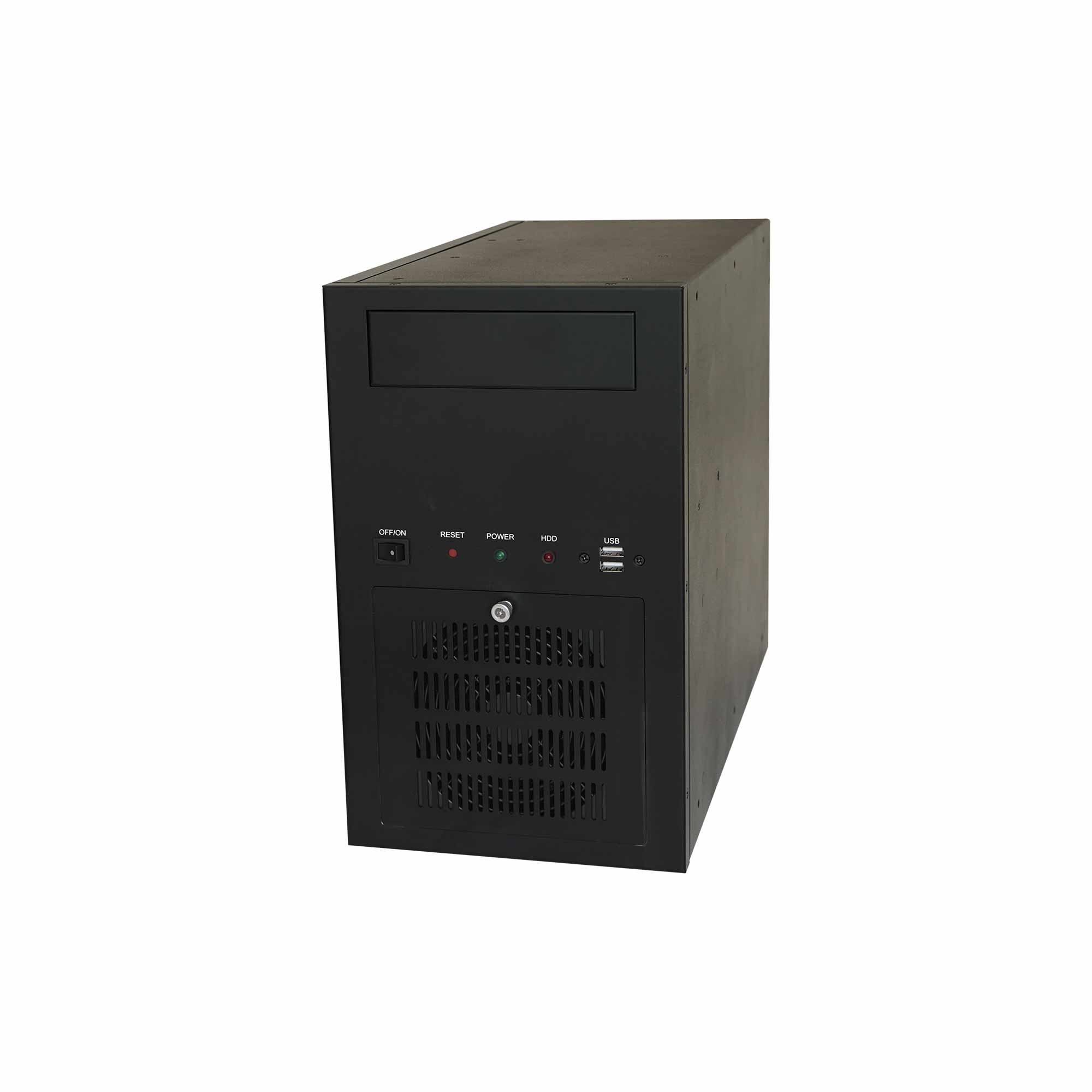

前部可訪問 USB接口，更易于數據傳輸
海岸線上的USB端口支持Ennoconn USB SR Pro

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 10th Gen Core ? i9/i7/i5/i3/Xeon?Processor, LGA1200, TDP up to 95W

系統 System

處理器 Processor	Intel^? 10th Gen Core ? i9/i7/i5/i3/Xeon^?Processor, LGA1200, TDP up to 95W
芯片組 Chipset	Intel^? W480E
內存 Memory	4 x DDR4 ECC/Non-ECC 2400/2666/2933 MHz U-DIMM Slot, up to 128GB(Core ? i5/i7/i9 only support Non-ECC)
圖形 Graphics	Intel^? UHD Graphics 630
存儲 Storage	4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280
操作系統 OS	Windows 10, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信賴平臺模塊 TPM	Nuvoton TPM2.0(optional, need MOQ)

外部接口 External I/O

網口 Ethernet	1 x Intel^? i219-LM GbE, 2 x Intel^? i211-AT/i210-AT (10/100/1000 Mbps)
顯示 Video	1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2304 @ 60Hz
音頻 Audio	1 x Line-out, Line-in, Mic-in
串口 COM	1 x RS232/422/485 (with auto flow control)
USB	6 x USB3.2 Gen2, 2 x USB2.0
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

擴展接口 Expansion	2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI
風扇 FAN	1 x CPU Fan, 2 x System Fan
USB	6 x USB2.0 (1 x Type-A)
GPIO	1 x 16 bit GPIO
串口 COM	1 x RS232/422/485 (with auto flow control), 2 x RS232/485, 2 x RS232
LPT	1 x LPT
PS/2	1 x PS/2 (keyboard and mouse)

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation
